Product Details:
Payment & Shipping Terms:
|
| MOTOR: | Panasonic Servo Motor | TEST SPEED: | 0.1-500mm/min Selectable |
|---|---|---|---|
| MAX. STROKE: | 1000mm (including Fixture) | CAPACITY: | 5,10,20,25,50,100,200,500kg Optional |
| POWER: | AC 220V 50HZ | APLICATION: | Rubber ,plastic ,nylon ,leather And Etc |
| DESIGN STANDARD: | ASTM D903,GB/T16491 And Etc | GRIPS: | Different Material And Test Method With Different Grips |
| High Light: | 200KG universal test equipment,500KG universal test equipment,200KG universal material tester |
||

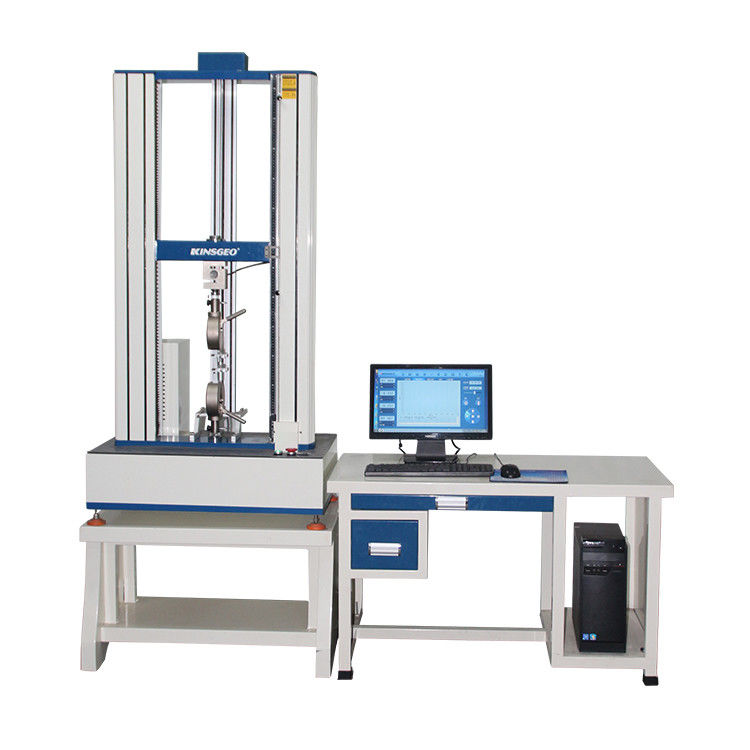

200KG 500KG Double Columns Universal Tensile Testing Machines for Rubber
KJ-1066A Computer Universal Testing Machine(1).pdf...
Specifications of Universal testing machine
| Items | Tensile Testing Machine |
| Capacity | 100. 200. 500. 1000. 2000. 3000. 5000. 10000kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | LCD or PC / Tensile Testing Machine |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1000mm (including fixture) |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ or customized |
| Weight | Approx.500kg / Tensile Testing Machine |
| Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |
Application Industries
Universal Tensile Strength Testing Machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features of Universal Tensile Strength Testing Machine, Tensile Tester
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2. Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
KeJian Instrument Service:
Onsite Service:
1. Device installation 2. Equipment Operation Test Technology training 3. Equipment Calibration 4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction; 2. Product operation instruction/video; 3. Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication; 2. Mail Seamless Docking; 3. Video Conferencing; 4. Artificial free door-to-door service
Contact Us:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
