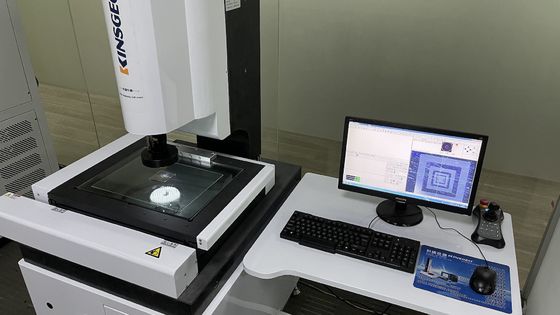

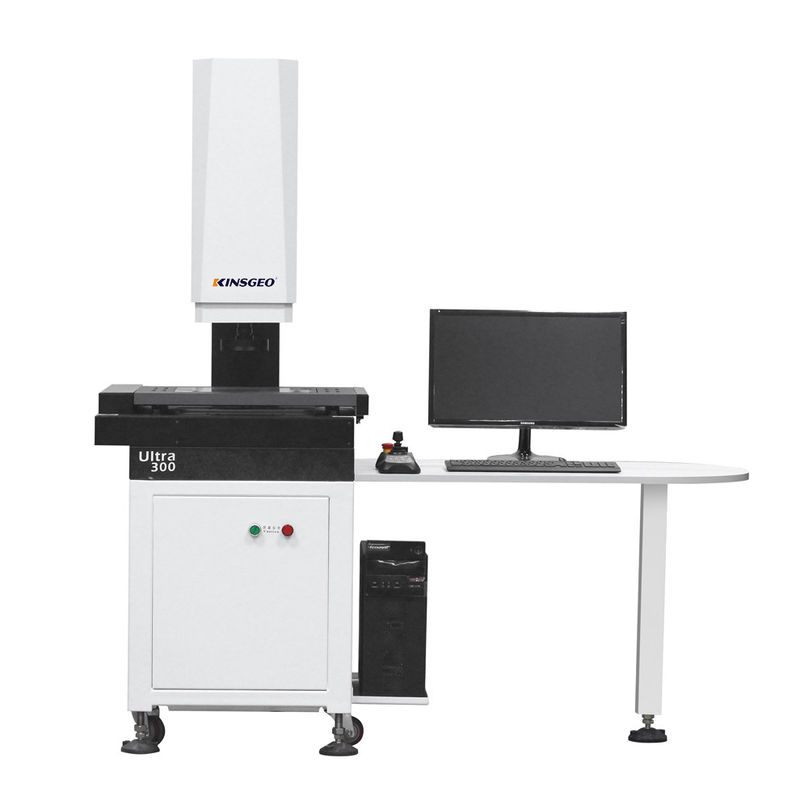

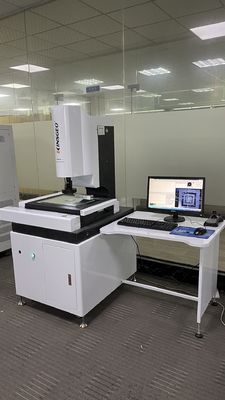

128X Vision Testing Equipment , KINSGEO Video Measuring Equipment

128X Vision Testing Equipment , KINSGEO Video Measuring Equipment
128X Vision Testing Equipment , KINSGEO Video Measuring Equipment

Large Image :  128X Vision Testing Equipment , KINSGEO Video Measuring Equipment

Product Details:
Place of Origin: CHINA
Brand Name: KINSGEO
Certification: ISO, CE
Model Number: KJ-VMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden cases
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set per Months
Detailed Product Description
Product Name: Image Instrument Optical Machine Test Distance: 500x400x200
X Y Axis Accuracy: ≤3+L/200 Z-axis Accuracy: ≤3+L/100
Resolution: 0.1μm Composite Multiple: 20~128X
Power Supply: 220V Warranty: 12 Months
High Light:

128X Vision Testing Equipment

,

KINSGEO Vision Testing Equipment

,

KINSGEO Video Measuring Equipment

Image Instrument Optical Machine Vision Testing Equipment Video Measuring Equipment



Instructions

VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other industries.



Specification



  VMC3020D VMC4030D VMC5040D

Test distance(mm)

X Y Z

300x200x200 400x300x200 500x400x200
Weight(kg) 250 350 500
Load capacity 15kg



X Y axis accuracy(μm)

≤3+L/200(L is the unit of measure mm)
Z-axis accuracy (μm) ≤3+L/100(L is the unit of measure mm)
Working Distance 82mm
Resolution 0.1μm
Objective magnification 0.7X-4.5X
Composite Multiple 20~128X
Control System CNC CLOSED-LOOP CONTROL system
Lighting System Surface light source and transmission light source are LED, brightness adjustable
Computer Windows 7

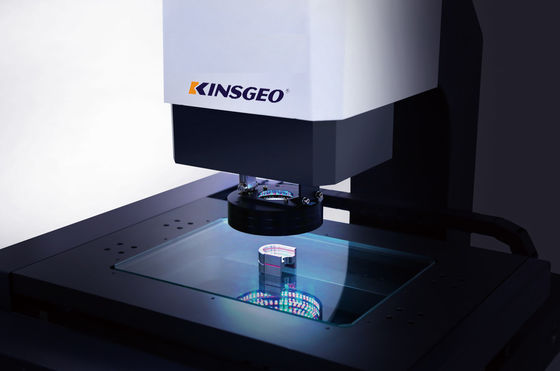

128X Vision Testing Equipment , KINSGEO Video Measuring Equipment 0

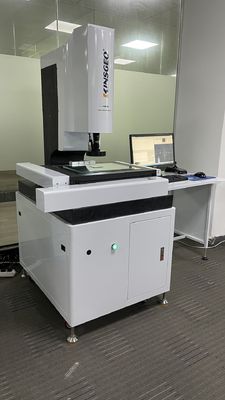

128X Vision Testing Equipment , KINSGEO Video Measuring Equipment 1



FAQ

1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Tensile Testing Machine

2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.

Tensile Testing Machine

3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.

Tensile Testing Machine

4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.

Tensile Testing Machine

6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.



KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service


128X Vision Testing Equipment , KINSGEO Video Measuring Equipment 2
