Steel Rebar Universal Tensile Tester , 600KN Tensile Strength Equipment

Steel Rebar Universal Tensile Tester , 600KN Tensile Strength Equipment
Steel Rebar Universal Tensile Tester , 600KN Tensile Strength Equipment

Large Image :  Steel Rebar Universal Tensile Tester , 600KN Tensile Strength Equipment

Product Details:
Place of Origin: Guangdong
Brand Name: KeJian
Model Number: 1000D
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 2800/Set
Packaging Details: wooden
Delivery Time: 5 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Set /Week
Detailed Product Description
Maximum Test Force (kN): 1000 Test Force Measurement Range: 2%-100%
Relative Error Of Test Force Indication: <± 1% Of The Indicated Value Test Force Resolution: Maximum Load 1/300000
Maximum Tensile Test Space (mm): 750 Compression Space (mm): 600
High Light:

Steel Rebar universal tensile tester

,

600KN universal tensile tester

,

600KN tensile strength equipment

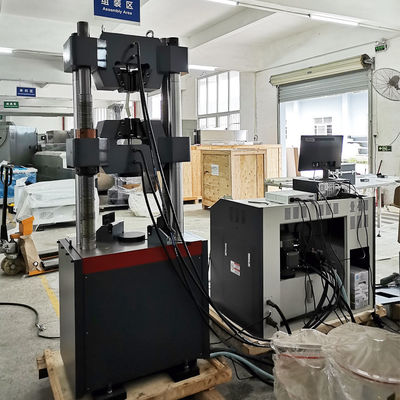

600KN Servohydraulic Steel Rebar Universal Testing Machine


1. Technical Parameters

Model
KJ-600D
Max.load
600KN
Load accuracy
Class 1 (Class 0.5 optional)
Load range
1%-100%FS (0.4% -100%FS optional)
Load resolution
1/500000
Deformation Measurement Range
0.2%~100%FS
Deformation accuracy
≤±1 %
Displacement resolution
0.01mm
Displacement accuracy
≤±1 %
Piston Stroke
200mm
Max. tensile test space
700mm
Max. Compression test space
650mm
Effective test space
505mm
Clamping method
Hydraulic Automatic Clamp Fixture
Power supply
3-phase, 380V, 50HZ 2.0kw (can be customized)



Steel Rebar Universal Tensile Tester , 600KN Tensile Strength Equipment 0

2. Application & Features
1.1 Computer + Software control and display 6 kinds test curves:
force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time
1.2 Fully closed loop servo control, adopts servo controller
1.3 Can do Tension, Compression, Bending, Shear Test
1.4 Can test materials: rebar, steel bar, steel plate, carbon fiber steel bar, bolts, nuts, wire rope
1.5 Can be customized following any customer's request and test standards.
