| Product Name: | UV Aging Testing Machine | Machine Size: | 70 * 135 * 145 Cm |
|---|---|---|---|
| Inside Size: | 45*117*50cm | Temperature Range: | RT + 10 °C ~ 70 °C |
| Humidity: | 95% R.H | Warranty: | 12 Months |
| High Light: | SS304 UV Accelerated Weathering Tester,SAE J2020 UV Accelerated Weathering Tester,PID SSR Control UV Testing Machine |
||

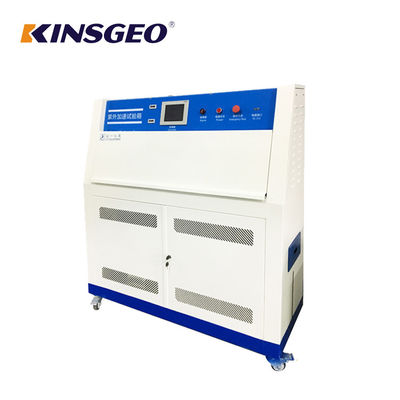

Standard UV Accelerated Weathering Tester UVA340 Stainless Steel Temperature Range
Product Applications:
UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
UV test profile :
Ⅲ. Technical Parameter:
| Model | KJ-9029 | |
| Test chamber size(L×W×H)MM | 1170×450×500 | |
| Outside dimension(L×W×H)MM | 1350×540×1480 | |
| Chamber materials | 304# stainless steel | |
| Temperature range | RT+20℃~70℃ | |
| Temperature uniformity: | ±1℃ | |
| Temperature fluctuation: | ±0.5℃ | |
| Temperature control | PID SSR control | |
| Humidity range | ≥90%RH | |
| Controller | TEMI 880 programmable controller, touch screen, LCD display | |
| Control mode | Balance temperature humidity control (BTHC) | |
| Communication function | Be able to control the machine via computer using TEMI control software through RS-232 port on the machine | |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
| Distance from specimen to lamp | 50±3mm (adjustable) | |
| Center distance between the lamps | 70mm | |
| Lamp power & length | 40W/Piece, 1200mm/Piece | |
| Lamps amount | 8 pieces of UVA-340 or UVB-313 imported lamps | |
| Lifetime of lamp | 1600Hours | |
| Irradiance | 1.0W/m2, adjustable directly on TEMI 880 touch screen controller | |
| Wavelength of ultraviolet light | UVA is 315-400nm and UVB 280-315nm | |
| Effective irradiation area | 900×210mm | |
| Irradiation black panel temperature | 50℃~70℃ | |
| Standard specimen size | 75×290mm/24 pieces | |
| Water depth for water channel | 25mm, automatically control | |
| Water consumption | 8L/day, tap water or distilled water | |
| Testing time | 0～999H, adjustable | |
| Power | 1 phase, 220V/50Hz /±10% 5KW | |
| Protection | Overload short circuit protection, over temperature protection, water lacking protection | |
Standard accessories:
1. One copy of English user guide.
2. One CD of controller software and operation instruction video.
