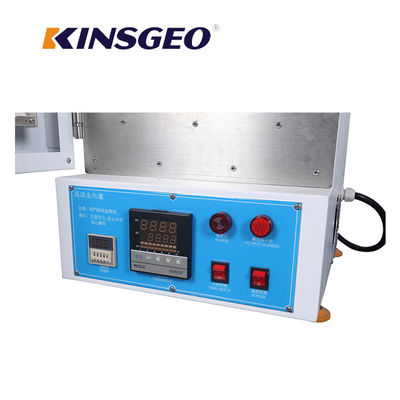

550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace

550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace
550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace 550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace

Large Image :  550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace

Product Details:
Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: Standard size in stock,3-7 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 Sets per Month
Detailed Product Description
Usage: Process Testing Machine System: Chinese,English Optional
Operation: LCD Or PC OEM Orde: Acceptable
Temperature Range: RT~1200℃ Accuracy: ±1
Power: 1200W Heating Time: RT~1200℃ About 60 Minutes
Style: 1200.C Electric Muffle Furnace Size: 550×440×600 Mm
Classfication: Lab Heating Equipment
High Light:

climatic test chamber

,

environmental testing equipment

550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace



Heat Treatment Electric Muffle Furnace 1200c Characteristics

Available for industrial and mining enterprises, scientific research units, such as laboratory for chemical analysis, physical testing and general small steel heat treatment.

  • Easy to installation,
  • Electric furnace adopts domestic advanced technology,
  • Rectangular monolithic lining made of silicon carbide refractory material,
  • Furnace is sealed structure, electric oven brick, brick oven door uses lightweight.
  • Made of high quality steel plate after flanging welding pull, control box with furnace body as a whole structure,
  • Iron chromium aluminum wire wound spiral heating element of wear on the inside lining, bottom, left and right wire slot.

Heat Treatment Electric Muffle Furnace 1200c Specification



Model

Inner size

(mm)H*W*D

Outer size

(mm)H*W*D

Voltage(V) Power(KW) Rated temp(°C)
BX-10-12 160×250×400 610×580×720 380 10 1200



Heat Treatment Electric Muffle Furnace 1200c Related Products



Name Model Inner size(mm)H*W*D Outer size(mm)H*W*D Voltage(V) Power(KW) Rated temp(°C)
Box tape furnace BX-2.5-10 80×120×200 500×440×575 220 2.5



1000



BX-4-10 120*200*300 500×460×530 220 4
BX-8-10 160×250×400 610×580×720 380 8
BX-12-10 200×300×500 690×610×870 380 12
BX-2.5-12 80×120×200 550×440×600 220 2.5 1200
BX-5-12 120×200×300 550×570×630 220 5
BX-12-12 200×300×500 690×610×870 380

12



550 × 440 × 600mm 220V 2.5KW Environmental Test Chambers Electric Muffle Furnace 0
