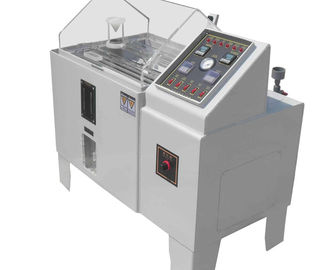

108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test

China 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test supplier
108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test supplier 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test supplier 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test supplier 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test supplier

Large Image :  108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test

Product Details:

Place of Origin: Dongguan China
Brand Name: Kejian Kinsgeo
Certification: ISO,CE and etc
Model Number: KJ-2070

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Delivery Time: 15-30 working days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Aplication: Salt Spray Machine Warranty: 12 Months
Usage Strength: Test Chamber Power: 1φ、220V/50HZ
Spray Capacity: 1~10cc/h Structure Material: F.R.P
Standard: ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371 Internal Size: 90×60×50cm



220V/50HZ 108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test







Uses:Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test,such as electroplating,anode processing,conversion coating ,painting and etc.



Specifications:

Item Salt Spray Chamber ASTM B368/D1654/E691/G85 Climate Salt Spray Machine
Inner Size (cm) 60×45×40 90×60×50 120×100×50 200×120×60
Outside Size 107×60×118 141×88×128 190×130×140 270×150×150
Capacity 108L 270L 600L 14400L
Temperature Lab: NSS.ACSS35℃±1℃ / CASS 50℃±1℃
Saturated air cylinder NSS.ACSS35℃±1℃ / CASS 50℃±1℃
Spray Capacity 1~10cc/h
Structure Material F.R.P
Accessories Test salt, barrel, tool
Powder 1 phase, 220V/50Hz



Cabinet material:
(1) Test chassis body with light gray PVC plates, a thickness of 8mm, durable temperature at 65 ° C.
(2) laboratory sealed cover transparent brown PVC board, thickness 8mm, high temperature does not distort the deformed, with opening the lid pole can be opened lid angle, saving installation space,
(3) Hide integrated reagent supplement bottles, easy to clean, easy to operate.

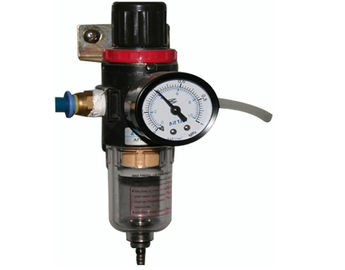

(4) pressure air barrel SUS # 304 stainless steel high pressure barrel insulation effect.

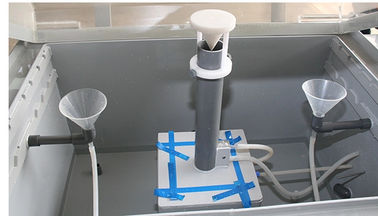

(5) three-tier test sample holder, freely adjust the the specimen angle and height, surrounded by uniform off the fog by fog completely consistent, accurate test results, the test sample is placed number. (Can be customized according to the requirements of the customer's product)



The technical basis:
In accordance with GB/T2423.17, GB/T10125-1997, GB10587, GB6460 GB10587 GB1771, ASTM-B117 GJB150 DIN50021-75, ISO-9227, ISO3768, ISO3769, ISO3770, CNS 362/3885/4159/7669/8866 JISD-0201/H-8502/H-8610/K-5400/Z-2371, NSS, ACSS, CASS standard parameters of operation set.









Product details:

salt fog chamber corrosion tester equipment salt spray test machine / used salt spray test chamber price

108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test



Pictures:



108L Programmable Salt Spray Corrosion Test Chamber For Alkaline Corrosive Test
