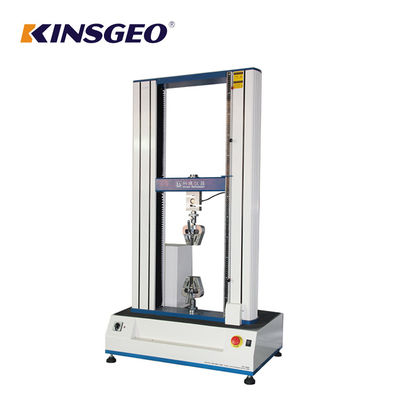

1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor

1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor
1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor 1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor 1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor 1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor

Large Image :  1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor

Product Details:
Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: Kejian Kinsgeo
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Detailed Product Description
MOTOR: Panasonic Servo Motor CONTROL: PC
TEST SPEED: 0.1-500mm/min Selectable ACCURACY: ±0.5%
CAPACITY: 5,10,20,25,50,100,200,500kg Optional SENSOR: USA Sensor
APLICATION: Rubber ,plastic ,nylon ,leather And Etc DESIGN STANDARD: ASTM D903,GB/T16491 And Etc
GRIPS: Different Material And Test Method With Different Grips MAXIMUM TRIP: 1000mm
High Light:

tensile strength instrument

,

universal tensile testing machine

1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor



Description:



This Universal Tensile Test Machine can do tensile test, tear test, peel test, bond test with different clamps for plastic ,rubber,leather,textile,tape,film and other kind of materials.

This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the PC screen.



Applications:

  1. Deformation under defined load: Test deformation under defined load of tested sample

  2. Load under defined deformation: Test load under defined deformation of tested sample

  3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

  4. This universal test machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test,elongation test,tensile strength with different clamps.


Design Standard(inculding but not limited to... ):

  • Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2

  • Bend Test ISO-178 / ASTM D 790

  • Tear Test:ASTM D 624

  • Peel Test : ASTM D 3330

  • Compression Test : ASTM D 659

  • others...



Specification:

The parameters for the company Standard Model parameters, we support customer customization parameters

Item Description
Max. Force 2000 kg (20KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1200mm including fixture
Load cell Resolution 1/250,000
Load Precision ≤0.5%
Test speed 0.5~500mm/min (adjustable by PC)
Test width ≤400mm
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



















































The parameters for the company Standard Model parameters, we support customer customization parameters



Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.



1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor 0



1000mm Tensile Strength Testing Equipment With Single Pole / Panasonic Servo Motor 1
