PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor

China PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor supplier
PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor supplier PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor supplier

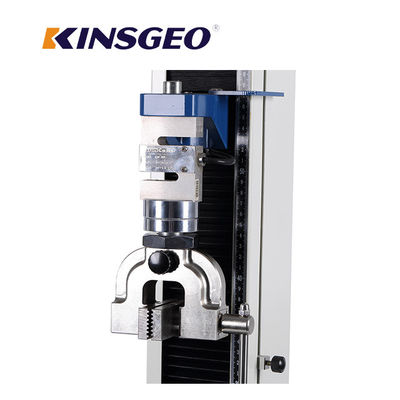

Large Image :  PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor

Product Details:

Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: Kejian Kinsgeo

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Contact Now
Detailed Product Description
MOTOR: Panasonic Servo Motor CONTROL: PC
TEST SPEED: 0.1-500mm/min Selectable ACCURACY: ±0.5%
CAPACITY: 5,10,20,25,50,100,200,500kg Optional SENSOR: USA Sensor
APLICATION: Rubber ,plastic ,nylon ,leather And Etc DESIGN STANDARD: ASTM D903,GB/T16491 And Etc
GRIPS: Different Material And Test Method With Different Grips MAXIMUM TRIP: 1000mm

PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor


Uses:

Single Column Compression Testing Machine​ is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.



Application :



Imported Load Cell Tensile Testing Machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection,Mechanics Research and Material Development.



Feature:

1.)Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.

2) Using a single-screen operation; do not need to switch the screen;

3)With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

4) The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;

5)Choosing translational, comparative mode at the same time to make a number of curve data comparison

6) With a variety of measurement units, Measure In Imperial & Metric are switchable;

7) With self-return & auto-correction function;

8) With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9)With the user-defined Test methods; with experimental data analysis function;

10) High quality, accurate and reliable models with reasonable price.



Standard:

ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,CNS- 11888,JIS K6854, PSTC-7.



Single Pole Tentile Testing Machine Technical Parameters





Capacity (optional) 5,10,50,100,200kg
Unit (Switchable) G, KG, N, LB
Load Resolution 1/250,000
Load Accuracy < ± 0.5%
Stroke (include the grips) 800mm
Test speed 0.1~500mm/min selectable
Weight (exclude the grips) 85Kg
Operation Mode PC or LCD
Motor Servo Motor
Dimension(W×D×H)-Main Unit 570×510×1240mm
Driver High precise ball screw
Power Single phase, 220V/ 10A or designated
Accessories Tensile grips 1 set, one computer




Safety Device:

 Stroke protection: upper and low limit protection, prevent over preset
Force protection: system setting Emergency stop device: Handling emergencies.


Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.



PC Control Single Pole Peel Strenth Tentile testing equipment with Panasonic Servo Motor
