1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity

China 1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity supplier
1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity supplier 1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity supplier

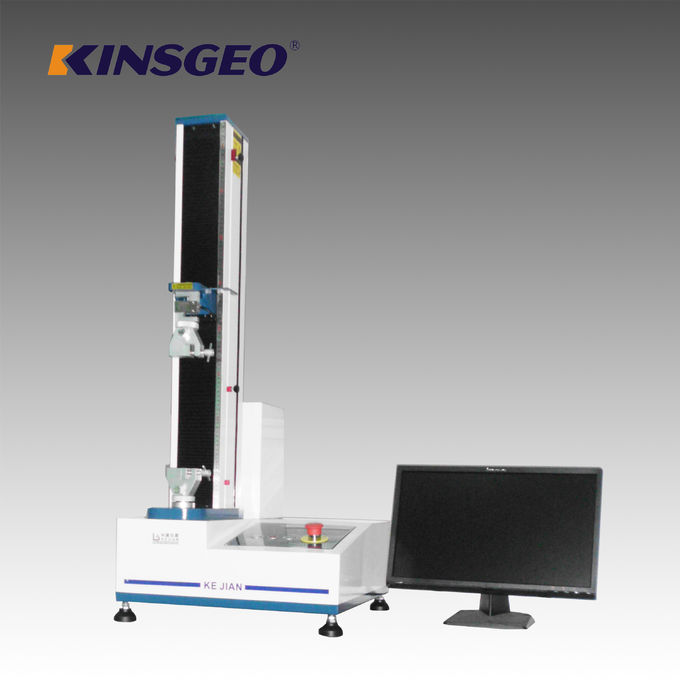

Large Image :  1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity

Product Details:

Place of Origin: Dongguan,China
Brand Name: KEJIAN
Certification: ISO,CE and etc.
Model Number: Kejian Kinsgeo

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after we confirmed order
Payment Terms: T/T, Western Union, MoneyGram, L/C, T/T
Supply Ability: 5000 Sets/Year
Contact Now
Detailed Product Description
MOTOR: Panasonic Servo Motor CONTROL: PC
TEST SPEED: 0.1-500mm/min Selectable ACCURACY: ±0.5%
CAPACITY: 5,10,20,25,50,100,200,500kg Optional SENSOR: USA Sensor
APLICATION: Rubber ,plastic ,nylon ,leather And Etc DESIGN STANDARD: ASTM D903,GB/T16491 And Etc
GRIPS: Different Material And Test Method With Different Grips MAXIMUM TRIP: 1000mm

1000mm USA Sensor Universal Testing Machines with 25kg , 50kg ,100kg Capacity

Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,ASTM C633 and etc.

Technical parameter:


ModelSingle Column Computer Universal Tensile Testing Machine
Max load50N,100N,200N,500N, 1KN, 2KN (optional)
Accurate grade1 grade /0.5 grade
Effective measuring rangeForce from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracyTolerance ±1%/tolerance ±0.5%
Tester resolutionMax load 1/200000, and constant resolution
Load sensorBasic configurationsensormax load:from four sensors to choose one
Effective tensile stroke800mm (can be widened according to customers requirement )
Effective testing width300mm
Testing speedFrom 0.001 to 500mm/min
Accruacy of displacement measurementTolerance: ±0.5% / tolerance: ±0.2%
SafetyElectronic-limit protection
Testing platform moving deviceFast /slow ( two speeds to control), can jog
Return BackManual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protectionOverload 10%,automatic protection
FixtureA set of tensile fixture
Machine size650*360*2100mm (L*W*H)
Power systemPanasonic AC Servo Motor + Driver + high-precision ball screw
Temperature rangeFrom normal temperature to 200 degree
Temperature displayDigital display
Inside space200*300*500mm (W*L*H )
Cooling systemCompression from France
Power supply220V50HZ or according to the requirement
Power0.4KW ( depending on different demand of force, using different motor)
Weight150 Kg


Main features:
1. Good design.My company has been great emphasis on product appearance and development of many models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.

3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4.LCD liquid crystal display with backlight, can be used in low-light environment.
5. Single determination, you can read the tension and compression peaks in both directions, and automatic and manual reset;
6,With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.

Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
