50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column

Good quality Peel Adhesion Test Equipment for sales
Good quality Peel Adhesion Test Equipment for sales
Kejian Universal Testing Machine quality is the best,after-sale service is also great.

—— Oscar Vargas

Paper Testing Machine is one of the best product.

—— Kritsana Praikongkadhrama

I'm Online Chat Now

50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column

China 50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column supplier

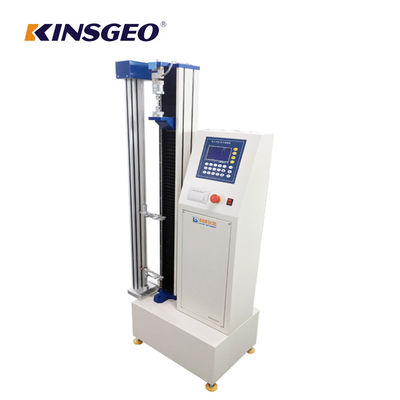

Large Image :  50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column

Product Details:

Place of Origin: China
Brand Name: KeJian
Certification: ISO, CE and ect.
Model Number: KJ-1075

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Model: KJ-1075 Capacity: 10-500KG
Accuracy: ±1% Range Of Speed: 50-500 Mm/min(100,200,300,400,500)Stepless Speed And Adjustable
Unit: G,kg,N,KN,LB(switchover Free) Test Stroke: 1200mm

50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column





Standard



GB/T16491,GB/T1040,GB/T8804.1,GB/T8804.2,GB/T1041,GB/T9341,GB/T8808,GB/T18477,GB/T583,GB13022 GB8804.2-88 and ect.





Uses


This machine is used to test tensile, peeling, shearing for textile, rubber, plastic, synthetic leather, tape, electron and metal,etc, to determine the product or semi-product quality.





Character


1.The appearance uses cold drawing static spraying maps,Concise and easy,multifunction.
2.Figure liquid display,can distinguish the tension or pression,easy to read.Three kind unit:N,Kgf,Lbf
3. you can read the peak value from the tension and pression direction,and zero clearing aumotically and handle.
4. Halt overload funtion.
5. Floor type with beautiful structure.

6.Main screen show current test force and the top force value.
7.Unit force Kgf,N,Inb change over easy. Decimal digits can be set from 0 to 4, the highest point manually taking the test data can be stored 10. Automatically figure out average value and print out the test results.
8.Safety Device:Over-load protection,upper and lower limit,breakage protection, presetting point stop.
9.It has current value printing out and setting password functions.





Accessories


1.Suitable Grips that meet customer sample need.
2.Special peeling tools for peel test in tape&film industry.
3.English operation teach video.





Specifications



Capacity 10-500KG
Accuracy ±1%
Resolution 1/50000
Range of speed 50-500 mm/min(100, 200, 300, 400, 500)Stepless speed and adjustable
Unit g,kg,N,KN,LB(switchover free)
Operation method Window XP,Win 7,computer control
Kind of drive high-precision ball screw
Motor DC motor
Test Stroke 1200mm
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, printer and operation manual
Emergency stop device Handing emergencies
Weight 200KG
Dimention (W*D*H)60×45×180cm
Power 1PH,AC220V,50/60HZ
Display Panal Leakage protection,Over-load protection,Emergency stop,Upper and lower limit device.
Protection stretcher, air clamp
Display Panal load cell+KJ-2006displayer





50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column

50-500 mm/min Speed Floor Type Tensile Strength Testing Machine Leather with Single Column





RFQ:


Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.


2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.


3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
