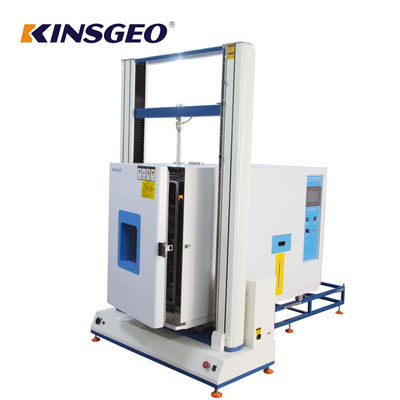

0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG

China 0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG supplier
0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG supplier 0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG supplier 0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG supplier 0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG supplier

Large Image :  0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG

Product Details:

Place of Origin: China
Brand Name: KeJian
Certification: ISO, CE and ect.
Model Number: KJ-1067

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Delivery Time: In stock,3-7 working days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Model: KJ-1067 Capacity: 2-1000KG
Accuracy: ≤0.5% Resolution: 1/250000
Range Of Speed: 0.5~1000mm/min (control By Keyboard Inputing) Unit: G,kg,N,KN,LB(switchover Free)
Test Space: (L×W×H)40×40×70cm Weight: 200KG

0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG





Uses:


This machine combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.




Character:


1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
4. Have steady performace, high accuracy, powerful software function and easy operation.
5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.





Accessories:


1.Suitable Grips that meet customer sample need.
2.Special peeling tools for peel test in tape&film industry.
3.Software for test control,data acquisition and report.
4.English operation teach video.


BESTE Software functions:


1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3.Have simplified Chinese, traditional Chinese and English three languages, switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function.

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;





Specifications



Capacity 2-1000KG
Unit g,kg,N,KN,LB( switchover free)
Operation method Windows operation
Resolution 1/2500,000
Accuracy ≤0.5%
Testing speed 0.5~1000mm/min
Stroke 400,500,600mm(Height can be customed)
Test width 40cm (can be changed by customer needs)
Test space (L×W×H)40×40×70cm
Motor Panasonic servo motor
Kind of drive high-precision ball screw
Weight 200kg
Power 1φ,220V/50Hz
Rate of work 0.4KW(depend on motor model)
Clamp customize by customer needs(tensile and compressive clamp)





Temperature control system:



Temperature range -40℃~150℃
Temperature method computer P.I.D.automatic control
Humidity range 20%RH~98%RH
Stability of control ±2.5%RH,±1℃
Accuracy of distribution ±3%RH,±1℃
Temperature&humidity control Korea TEMI880
Circulatory System Wind forced circulation
Heating System SUS#304, stainless steel heater
Humidifying System Surface evaporation, a transparent structure.
Cooling system Fan cooling mode, high efficiency of all sealed compressor
Dehumidifying System Freezing latent heat dehumidification mode
Internal&external material SUS#304
Inner dimension (L×W×H)40×40×70cm
Stroke protection Machinery, computer double protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies



0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG

0.5~1000mm/min Speed High And Low Temperature Peel Adhesion Test Equipment Peeling Strength Tester with 200KG





RFQ:


Why choose us?


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.


2. Excellent after sale service:
1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.


3. Good Packaging:
Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
