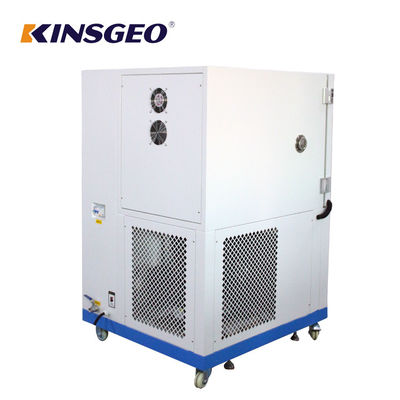

225L Programmable Temperature Humidity Test Chamber For Different Meterial

China 225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier
225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier 225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier 225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier 225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier 225L Programmable Temperature Humidity Test Chamber For Different Meterial supplier

Large Image :  225L Programmable Temperature Humidity Test Chamber For Different Meterial

Product Details:

Place of Origin: China
Brand Name: KEJIAN
Certification: ISO, CE and etc.
Model Number: KJ-2091

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Ploywood box
Delivery Time: 200 sets per month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow
Supply Ability: In stock, 3-7 working days after order confirmed
Contact Now
Detailed Product Description
Inner Size: ( W×H×D)50*75*60cm Inner Chamber Volume: 225L
Temperature And Humidity Controll Range: -40℃-150℃, RH20%-98% Power Supply: 8.0 KW
Power: 3φ38V AC±10% 50/60Hz Refrigerator: Whole Sealing Piston France Taikang Brand Compressor
Operation Method: Windows Operation Weight: 200Kg
Testing Space: 40*40*70cm Motor: Panasonic Servo Motor

225L​ Programmable Temperature humidity chamber for different meterial





Uses:



This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.





Specification:



Model KJ-2091
Inner size W×H×D(cm) 50*75*60cm
Inner chamber volume(V) 225L
Temperature and humidity Controll range -40℃-150℃, RH20%-98%
Function Temperature fluctuation ±0.5℃; ±2.5%RH
Temperature deviation ±0.5℃-±2℃; ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller resolution ±0.3℃
Controller brand Korea TEMI880

Heating Time

(RT-HT)℃/min

0-3℃/min(can set)

Cooling Time

(RT-LT)℃/min

1℃/min
Power supply KW 8.0
Material Inner material SUS 304#steel plate
Outside material SUS 304#steel plate(surface disposing)
Thermal insulation material Thermostability high density chlorine formic acid foam insulator material
System wind pathround-robin mode centrifugal fan-broadband enforce circulation
Refrigeration way Single stage compression refrigeration
Refrigerator whole sealing piston France Taikang brand Compressor
Freezing fluid R4O4A or USA Dupont environmental protection refrigerant(R23+R404)
Condensation way forced air cooling or water-cooling
Heater Nichrome heating wire heating
Humidifier Semi-enclosed steam humidification
Water-provide way full-automatic periodical feeding
Standard configuration 1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb,3 fuses, 1 power line.
Safety device Non- fuse-switch〔compressor overload, refrigerant high low voltage,over-humidity and temperature protection,Protection switch,fuse stoppage warning system
Power 3φ38V AC±10% 50/60Hz





Structure introduction:



Chamber structure

metal plate material:

The inner and outside material is SUS mirror surface corrosion resistant plate,inner chamber two sides have sample Rail frame,it has the adjustable hang strip, heat preservation and heat insulation at least 10cm with hardness polyamine foaming.It has the high quality bakelite and glass fibre doorframe cutting off the heat conduction. Heat-proof quality is quite good,the door airtight seal strip is the two-way wide hig-temperature resistance silicon foaming.

Test space blowing-in circulate

Mature blowing-in system use high temperature resistance multiple-blade wind wheel which is drived by the motor,the upside blade blow the wind in and the downside return the wind. When the temperature is -70-100℃,the error will be less 2℃

Controller system

Use the Youyi controller which is with low energy consumption (20W),the controll system accuracy is ±0.3℃.

High mark screen

5.7 inch LCD color screen with interactive parameter input method,resolution ratio is 800*480.

Big memory capacity

120 groups / 1200 section all repeatedly:maximum is 999 (can repeated unlimited),part repeated: support maximum 99 PC-Link, MODBUS(ASCII, RTU).And has fact curve with temperature and humidity.

convenient and fast connect the computer

Controller use R232 port,if you monitoring the history curve and need to playback the data,you can use editing operation.

Heating and humidity system

Heater: Spiral nichrome tubular electric heating element heater,High accuracy temperature fluctuation,and with long life!

Humidifier: Use shallow slot method to add the humidity.

Humidity measurment: use wet and dry bulb method.

Secondary protection:

Over-temperature protector:(protect the sample and the chamber);

Humidifier empty burn preventer(protect the humidifier).



Temperature and humidity chart

1.Circulate wind method choice:forced air supply

It is the best choice if you have require for the blow-in wind method

2.Water supply system choice:go against permeation.

We use the purified water when doing the humidity,use the pure water to supply the water.

3.Polymeric membrane/turning wheel dehumidification system

The requirement of the long time low-temature and low-humidity of the test is necessary,so that the cellular chemistry dehumidification is your necessary choice.The temperature and humidity can be the lowest point,that is 10℃ 10%RH

4.LN2/LCO2 Speediness cooling temperature system

We will provide the all complete USA imported LN2/LCO2 solenoid valve and related control system,so that it can reach the heating speedly requirement!

5.Adding the glass inner door and handle hole

If you want to move or open the test sample,we have add the glass door and handle hole,in case of the influence that opening the chamber door casued.

6.Recorder gaining the test data on time

If you need to do the testing and multipoint recording,adding the recording is your best choice!





Parts configuration:



No Name Manufacturer
1 Temperature Humidity Controller Youyi U-700
2 circulating fan Taiwan Shangyi
3 electromagnetic switch Japan SAGINOMIYA
4 intermediate relay Japan Omron
5 Wet and dry bulb sensor Taiwan Junwei
6 Compressor France Taikang
7 dry filter US Emerson
8 condensate fan

Germany Marl

9 solenoid valve Japan SAGINOMIYA
10 Heater Taiwan Longxing
11 SSR Taiwan Yangming
12 water pump Taiwan Shanye
13

evaporimeter

Taiwan Zhongli
14 Refrigerant compressor pressure protection device

Denmark Danfoss

15

R404A Refrigerant

US Dupont

16 centrifugal wind wheel Taiwan Shangyi
17 thermorelay Taiwan Taian
18

alternating current contactor

Taiwan Taian
19

residual-current circuit breaker (RCCB)

Japan Mitsubishi
20

hand expansion valve

Germany Honeywell

21

automatic expansion valve

Denmark Danfoss

22 thermal insulation material

Germany Bayer

23 stainless steel 304 Stainless steel
